J&M MI-2034 - INTEGRATR V MOTORCYCLE AUDIO SYSTEM COMPONENT

The IntegratrV (#MI-2034) has been developed to provide motorcycle riders with the most advanced audio and communications system available.

The IntegratrV has been optimized to provide excellent music fidelity for your listening enjoyment thru ''J&M’s elite & performance series corded stereo helmet headsets.

The 'J&M exclusive DynaVox® driver/passenger intercom system features our auto-sensitivity technology to automatically adjust for changes in ambient noise and wind buffeting at highway speeds.

The IntegratrV allows owners to utilize privately purchased portable modular electronic devices such as cell phones, two way FRS radios, portable music storage devices (iPod/MP3), along with navigation (GPS) & highway alert audio warning devices.

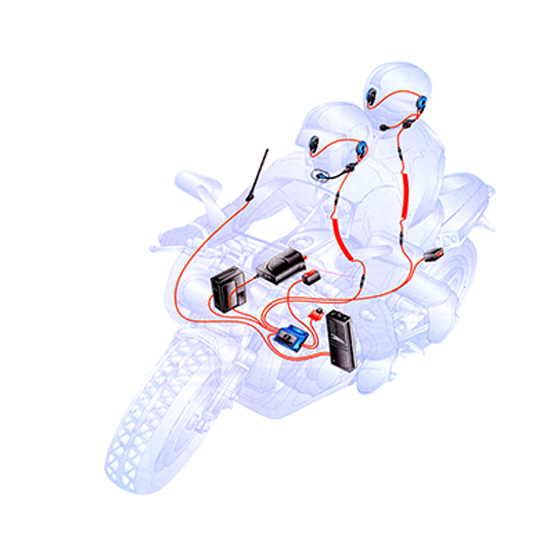

The IntegratrV manages all audio sources as well as communications with a passenger and other individuals, whether on motorcycles or other vehicles.

The audio management of the IntegratrV consists of inputs and outputs from numerous standard and optional devices. These levels go from lowest priority (level 1) to highest priority (level 5).

Level 1 - Auxiliary Audio Input (MP3 players/iPod/FGA-345’ factory stereo adapters)

Level 2 - Driver/passenger VOX intercom, mutes level 1 audio when engaged.

Level 3 - FRS/GMRS radios (462 MHz two-way radios from Kenwood, Motorola, etc.) will also mute level 1 audio and mix with Level 2 intercom when signal is received.

Level 4 - Cell Phone or Navigation (GPS), which mutes levels 1 & 3 and also connects rider and passenger helmet headsets to the cell phone, simultaneously engaging the intercom.

Level 5 - Radar detector will momentarily interrupt all lower levels (for right helmet speaker only), to signal: - Accessory Audio Warning Device, when using one of 'J&M’s custom radar connection harnesses.

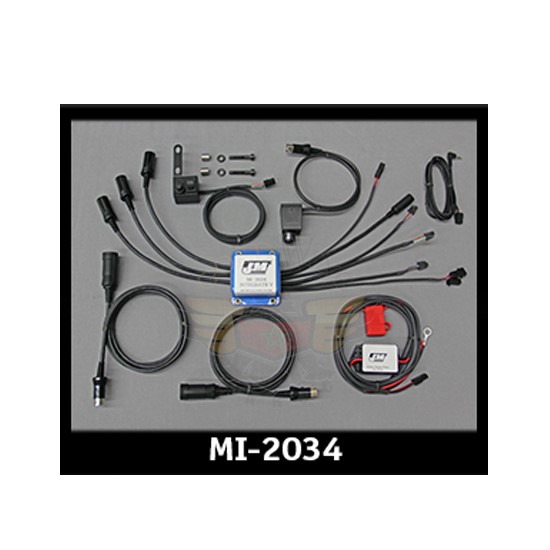

IntegratrV (MI-2034) kit includes the main integration component, handlebar mounted aux music volume up/dn control w/PTT button for FRS, aux music input cable, DynaVox intercom volume/sensitivity control, driver & passenger headset extension cables and complete installation/operation manual.

Important Note: The IntegratrV is a J&M 6-pin audio system that requires the pre-amplified microphone signal provided by our dual-mode helmet headsets along with the HC-ZJM or HC-PJM lower-section hook-up cord.
